Epson® F170 Sublimation Ultimate Starter Kit

Product Specifications

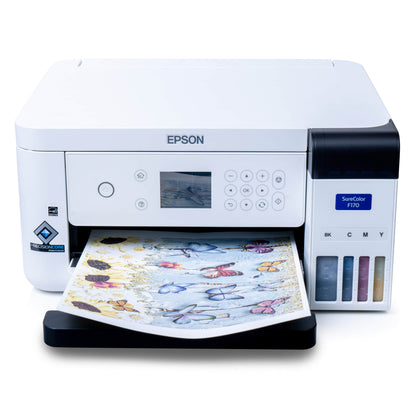

Epson F170 Sublimation Printer:

Print:

Printing Technology: PrecisionCore microTFP® printhead

Maximum Print Resolution: 1200 x 600 dpi

Minimum Ink Droplet Size: Variable-Sized Droplet Technology

Nozzle Configuration: 784 nozzles; 400 nozzles Black, 128 nozzles x Cyan, Magenta, and Yellow

Ink:

Ink Type: Epson T49M Ink Bottles

Ink Palette: 4-color (C, M, Y, K)

Replacement Ink:

• Black Ink Bottle T49M120
• Cyan Ink Bottle T49M220
• Magenta Ink Bottle T49M320
• Yellow Ink Bottle T49M420

General:

Operating Systems: Windows® 10, Windows 8, 8.1 (32-bit, 64-bit), Windows 7 (32-bit, 64-bit)Mac® OS X® 10.6 – macOS® 10.15.x6

Temperature:

• Operating: 50 ° to 95 °F (10 ° to 35 °C)
• Storage: -4 ° to 104 °F (-20 ° to 40 °C)

Humidity:

• Operating: 20 – 80%
• Storage: 5 – 85% (no condensation)

Sound Level:

• Power: 6.6 B(A)
• Pressure: 53 dB(A)

Dimensions:

• Printing: 14.8" x 19.8" x 7.4"
• Storage: 13.7" x 13.7" x 7.4"

Weight: 10.2 lb

Safety Approvals: Safety standards UL60950, CSA C22.2 No. 60950 EMI FCC Part 15 subpart B class B, CAN/CSA-CEI/IEC CISPR 22 class B

Country of Origin: Philippines

Warranty: Standard 1-year unit exchange with toll-free phone support Monday through Friday

Epson Intelligent Ink Cartridges:

In-box Cartridge Fill Volume: Bottle: C, M, Y, K: 140 mL each

Retail Cartridge Fill Volume: Bottle: C, M, Y, K: 140 mL

Ink Cartridge Shelf Life: 2 years from printed production date or 6 months after opened. Printer is designed for use with Epson ink bottles only, not third-party ink bottles or ink.*

Printable Area and Accuracy:

Maximum Paper Width: 8.5"

Minimum Paper Width: Sheet: 3.5"

Maximum Printable Length: Limited by application, OS and driver/RIP used4

Sheet Media Handling:

Sheet Loading:

• Max. Paper Size: 8.5" x 47.2"
• Paper Types: Epson DS Multi Use transfer paper
• Input Paper Capacity: Up to 150 sheets

Left/Right Margins: 3 mm each (0.24" total)

Printer Details:

Display: 2.4" color LCD with buttons

Interfaces: Standard Connectivity

• Hi-Speed USB
• Wireless (802.11 b/g/n)4
• Wi-Fi Direct4
• Ethernet (10/100 Mbps)

Power:

Rated Voltage: AC 100 – 240 V Universal (Automatic)

Rated Frequency: 50 – 60 Hz

Rated Current: 0.4 – 0.2 A

Power Consumption:

• Approx. 13 W (Operating)
• Approx. 4.1 W (Ready)
• Approx. 0.7 W (Sleep)

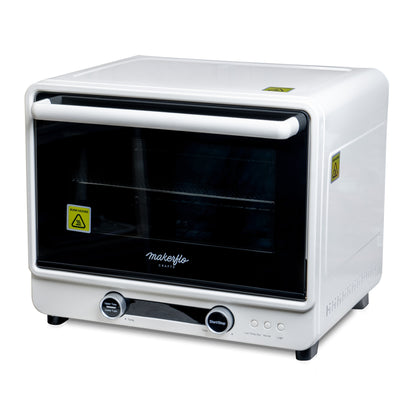

Sublimation Smart Convection Oven:

• Dimensions: 18" L x 14" W x 15" H
• Comes with 1 Heat Glove, 1 Wire Shelf, 1 Metal Mesh Shelf for smaller objects, and 1 Catch Plate to catch any debris or dirt
• Parts included: 3 upper tubes, 3 lower tubes, 1 back tube, 1 fan, and 1 oven light
• Upper and lower heating tubes can be adjusted together or separately
• Voltage: AC120V 50Hz
• Power: 1600W+400W（2000W）
• Temperature range: 140° F - 446° F
• 25 lbs.
• Equipped with six heating tubes to produce more uniform heat
• Consistent temperature is guaranteed due to the four-sided enamel cavity
• Digital temperature control system with smart sensor can detect temperature change and adjust it automatically
• Double-layered heat-resistant door makes it safe to operate and touch
• Whirlwind in the back makes the heat penetrate the entire interior area
